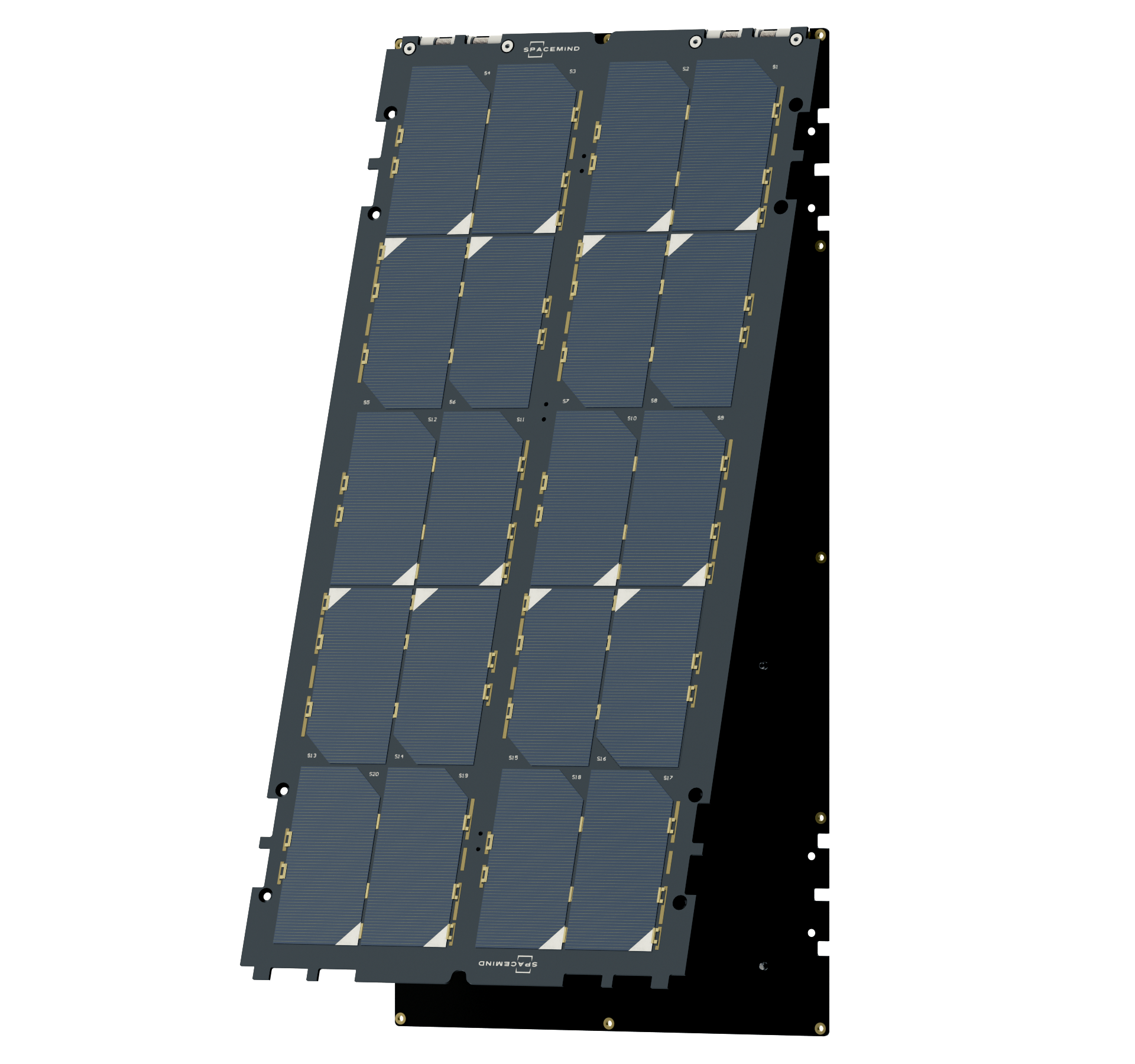

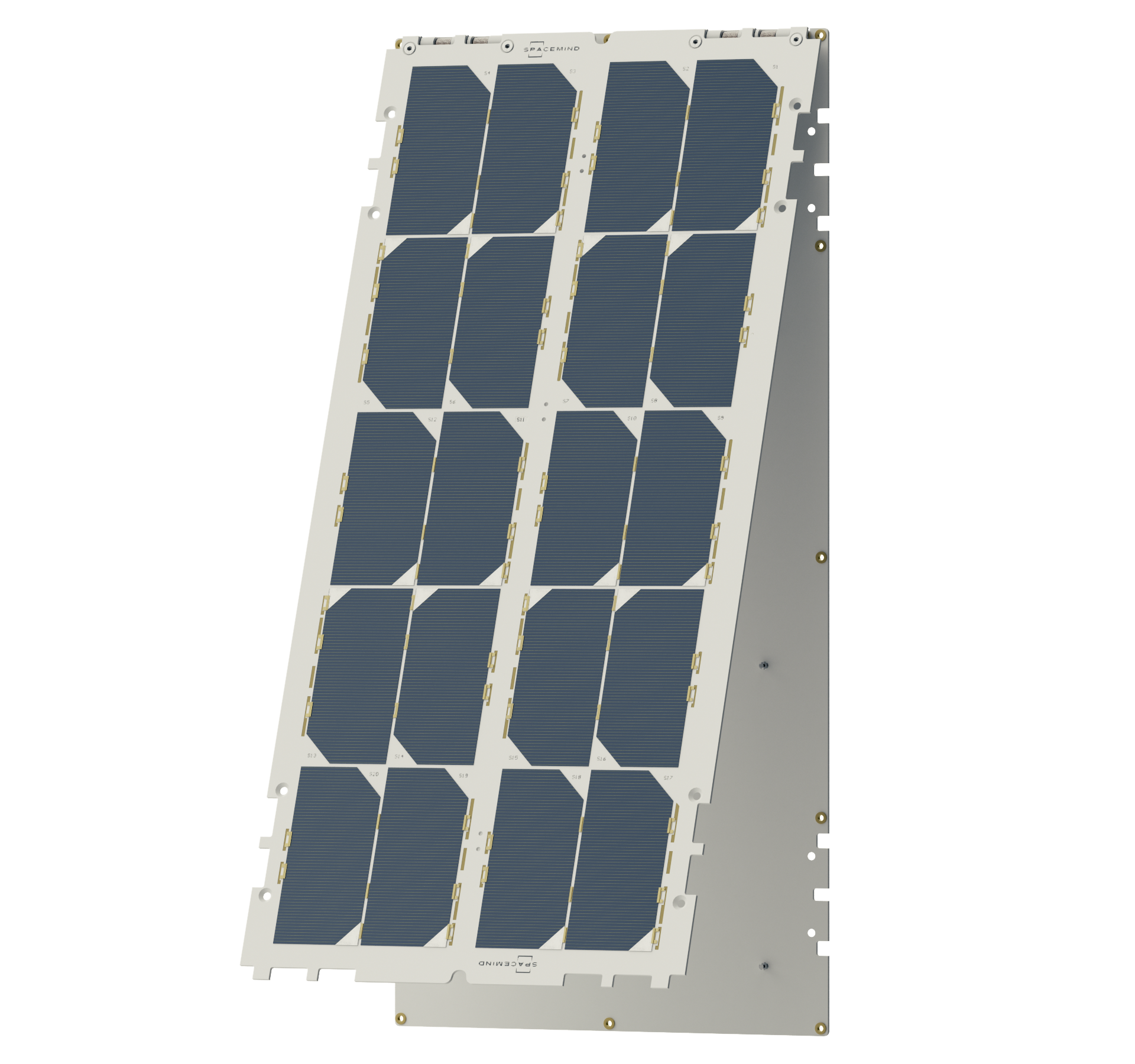

D-SP8X-V
Main Features:
- Deployable Solar panel for XY side
- Vertical Configuration
- Compatible with 8U/16U CubeSat structures
- High efficiency triple junction UTJ solar cells
- Peak power: 23 - 25 W
- Max power current: 1 – 1.04 A
- Max power voltage: 23 - 25 V
- Open circuit voltage: 26 – 27.5 V
- 4 parallel picoblade power connectors
- Option to add cells on the body fixed surface
- Customization options available
- Digital temperature sensor (SPI / I2C communication)
- NTC temperature sensor
- 2 Coarse Sun sensors
- Inertial module (3D Acc + 3D Gyro)
- Magnetic sensor (3 axis)
- Alternative solar cells connection
