DEORBITING SYSTEM
ARTICA DEORBITING SAIL

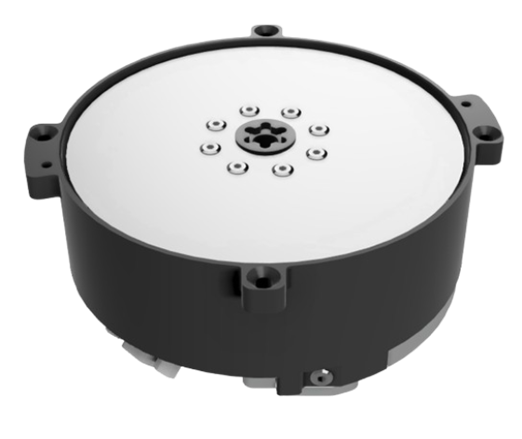

ARTICA (Aerodynamic Reentry Technology In CubeSat Applications) is a compact deorbiting system compatible with the CubeSat format and it can be easily assembled with any structure.

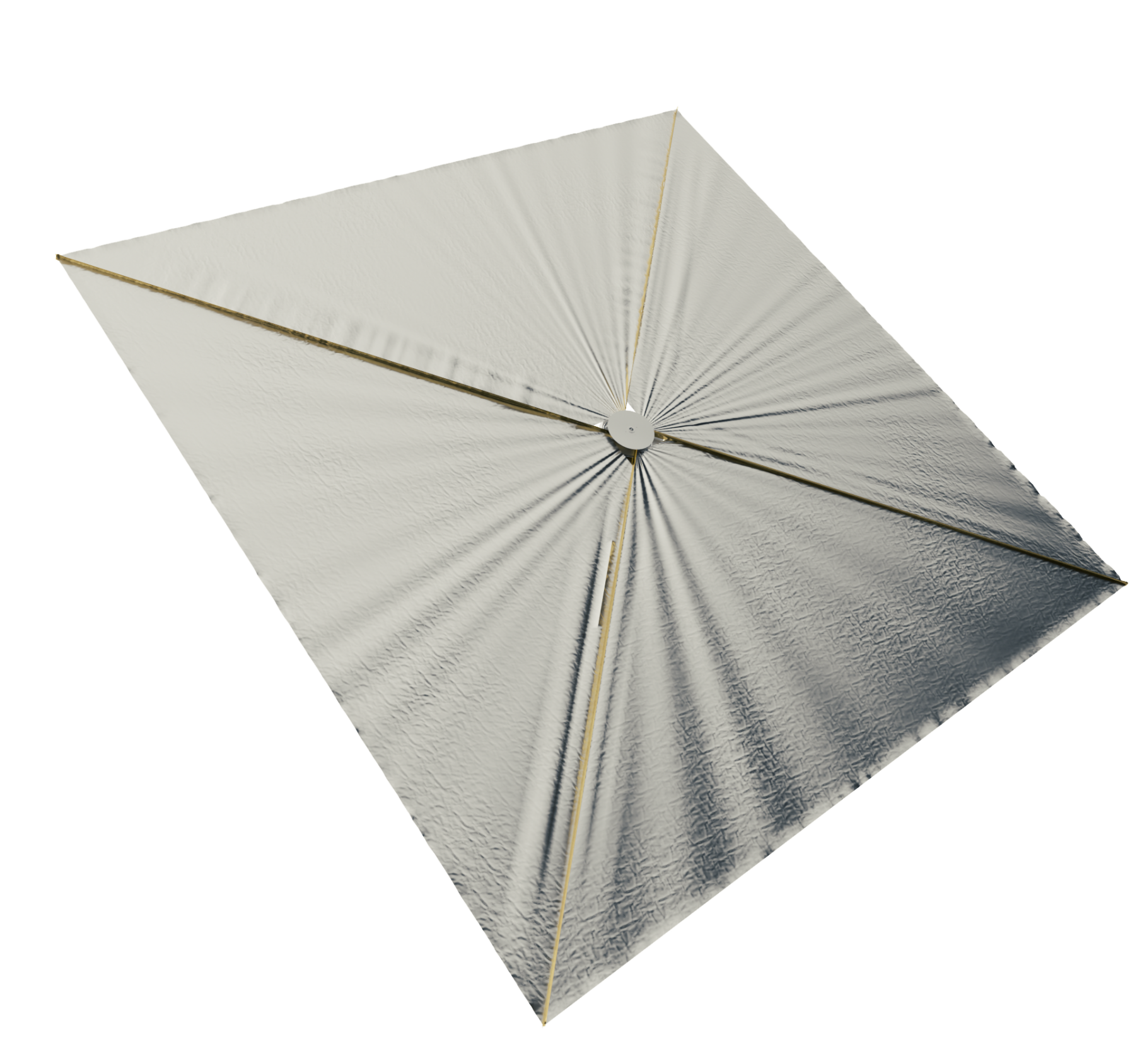

The system is based on the deployment of an aerobrake sail (2 sqm) and it is able to accelerate the decay of the orbit and safe destruction in Earth atmosphere of the satellite at the end of the mission, as an effective response to the problem of space debris.
KEY FEATURES
- Compatible with CubeSats up to 16U
- Volume: 0.35U
- Low Mass: 210 g
- Sail Surface: Up to 2.1 m²
- Customizable interfaces
- Plug&Play
- PC104 Compatible
- Possible complete autonomy
- High reliability
- Ease of integration
- Scalable performances
- De-Orbiting time: less than 5 years at 650km
TECHNICAL DATA
- Connector: Micro-DSUB 9
- Voltage Bus: 3-12 V upon customization
- Power Consumption: 6 W
- Feedback Logic: NC/NO upon customization
- Redundant power line
