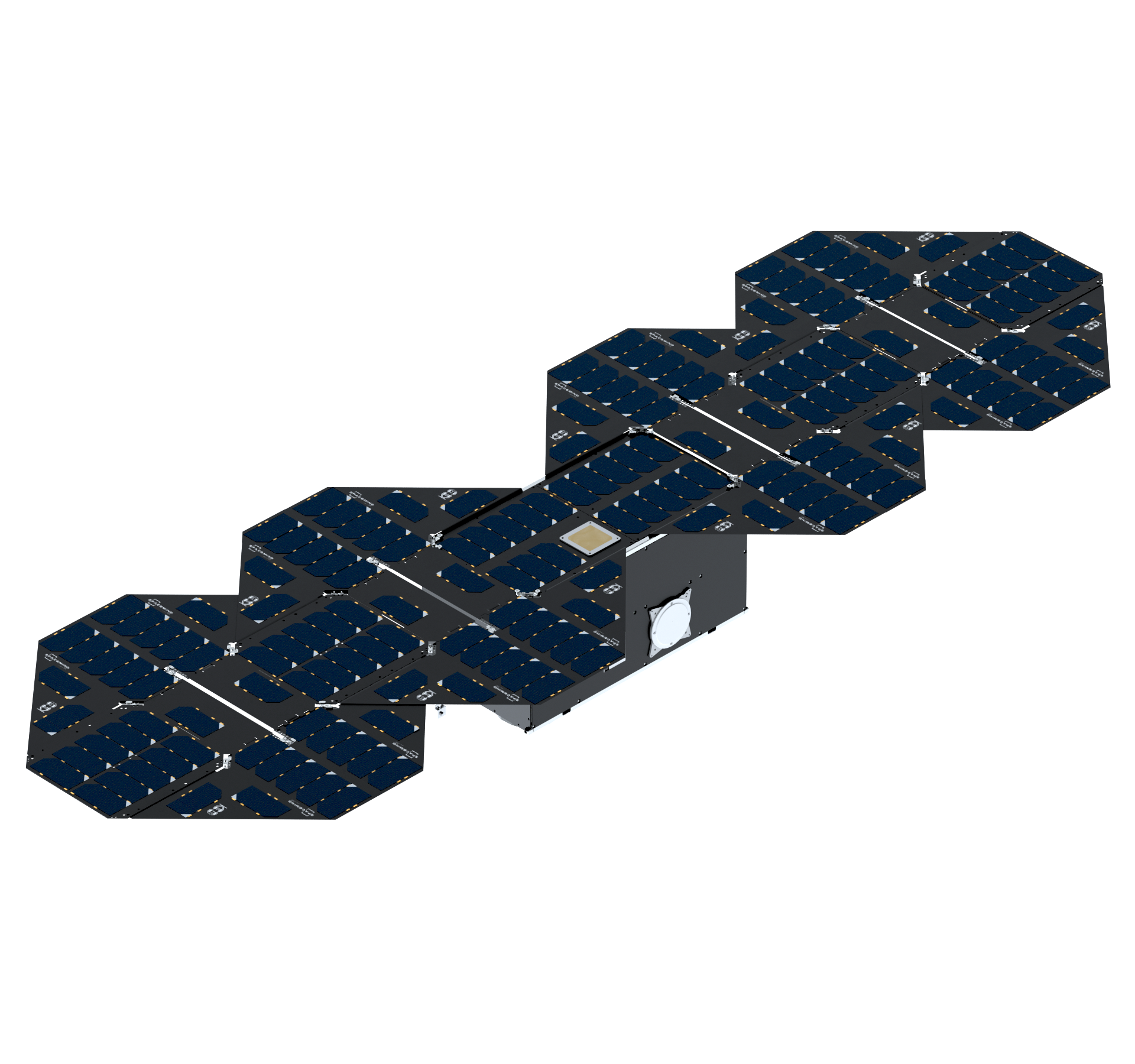

TEPHRA-TESSEL
Main Features:
- Payload volume: 9.6U
- Payload mass: 20 kg
- Average Payload Power*: 135 W
- Payload Interfaces:
- OBC: CAN-FD/ RS-422/Ethernet
- EPS: 2.5-22 V/ CAN/RS-485/ Ethernet
- TT&C=S-band: CAN-FD/UART, X-band
- Peak Power: 170 W
- Absolute Pointing Error: 0.1° - 0.03°
- Absolute Knowledge Error: ≤0.04°
- Downlink Data Rate: Up to 100 Mbps
- Optional Propulsion characteristics:
- Thrust 0.5-1.3 mN
- Total Impulse up to 5500 Ns
- Specific Impulse up to 2400 s
- Artica Deorbiting Sail: ✓
